Trim Network Link

Toolbar Link Editor →

This button can be used when a TMC-Link contains a Network Link that is longer than the TMC-Link itself.

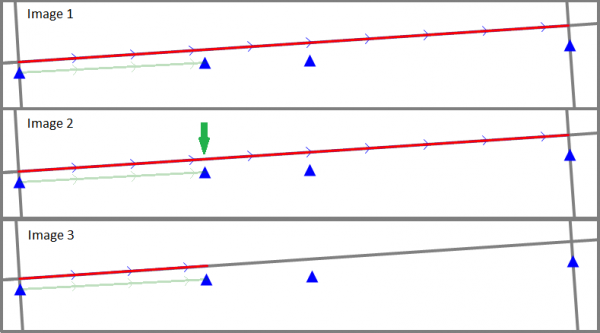

(Image 1: The points have been placed next to the road for better visibility)

Proceed as follows:

1. Add the Network Link to the TMC-Link as you would usually do.
2. Now activate the Trim-button. The cursor will turn into a + symbol.
3. Click on the Network Link there where it becomes too long (Image 2: green arrow).
4. Now move the mouse. The cursor should turn into an arrow with a + symbol beside it.
5. Click on that part of the Network Link you wish to keep (Here it would be the part on the left-hand side).
6. Now only this part of the Network Link should remain (Image 3).

The remaining part of the Network Link will automatically be added to the next TMC-Link where it then can be trimmed again if necessary. A Network Link can be trimmed several times.
